Description
Buy Wago 207-3301 Wagobox junction box. Maintenance-free enclosure for 221 connectors.
Fast UK delivery.
Product Code:
207-3301
Brand:
Wago
Colour:
Grey

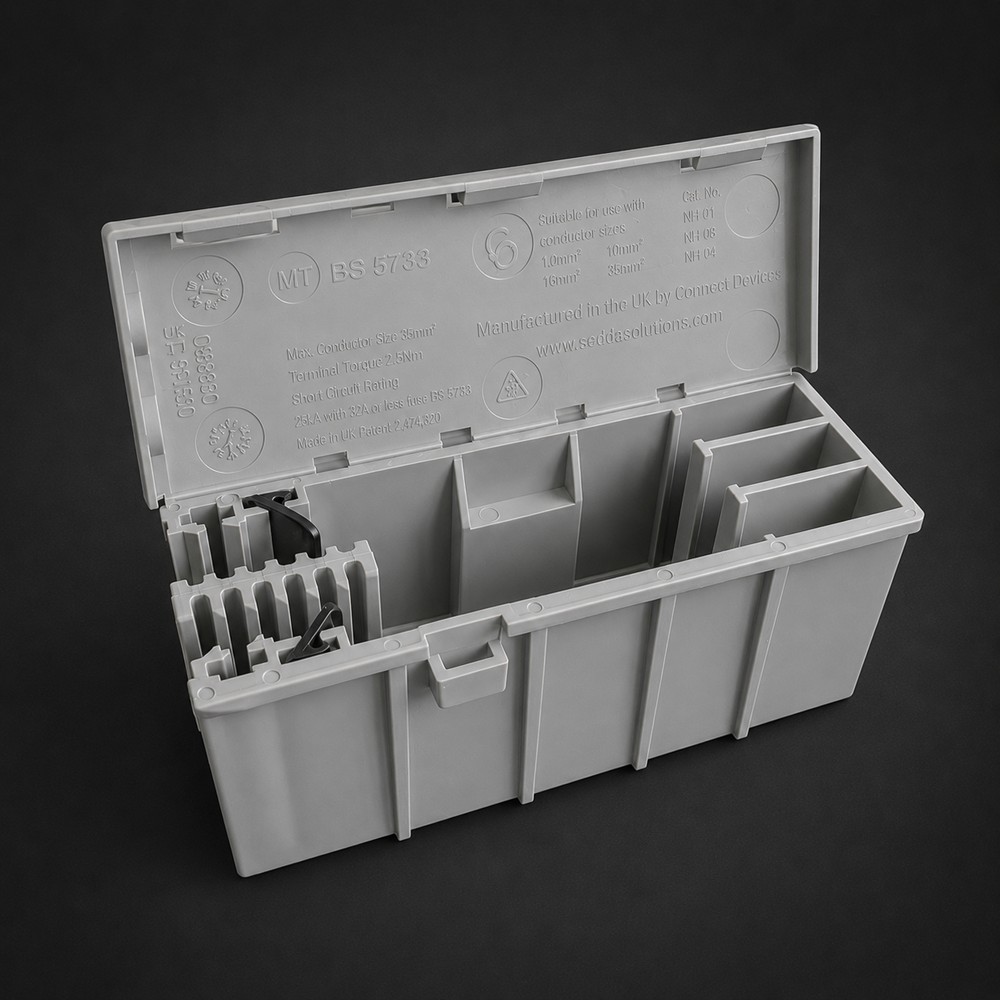

The Wago 207-3301 Wagobox is a compact maintenance-free junction box designed for use with Wago 221 series lever connectors and 2773 push-wire connectors. It provides a safe and compliant method of enclosing electrical connections, particularly in inaccessible areas.
Designed to BS 5733 (MF) requirements, it allows connectors to be installed and secured within a protective enclosure, ensuring long-term reliability without the need for maintenance.
KEY FEATURES
Maintenance-free junction box (BS 5733 MF compliant)
Designed for Wago 221 & 2773 connector series
32A rated, 400V operation
Supports cable sizes from 0.2mm² to 4mm²
Screwless design for fast installation
Integrated cable grips (up to 8mm diameter)
Adjustable cable tie for strain relief
Fast-fit mounting points for surface fixing
Suitable for lighting circuits and junction applications
Technical Specifications
Rated Current: 32A
Voltage: 400V
IP Rating: IP2X
Cable Capacity: 0.2mm² – 4mm²
Dimensions: 108mm x 39mm x 44mm
Standard: BS 5733 (MF), BS EN 60670-22
