CMA652

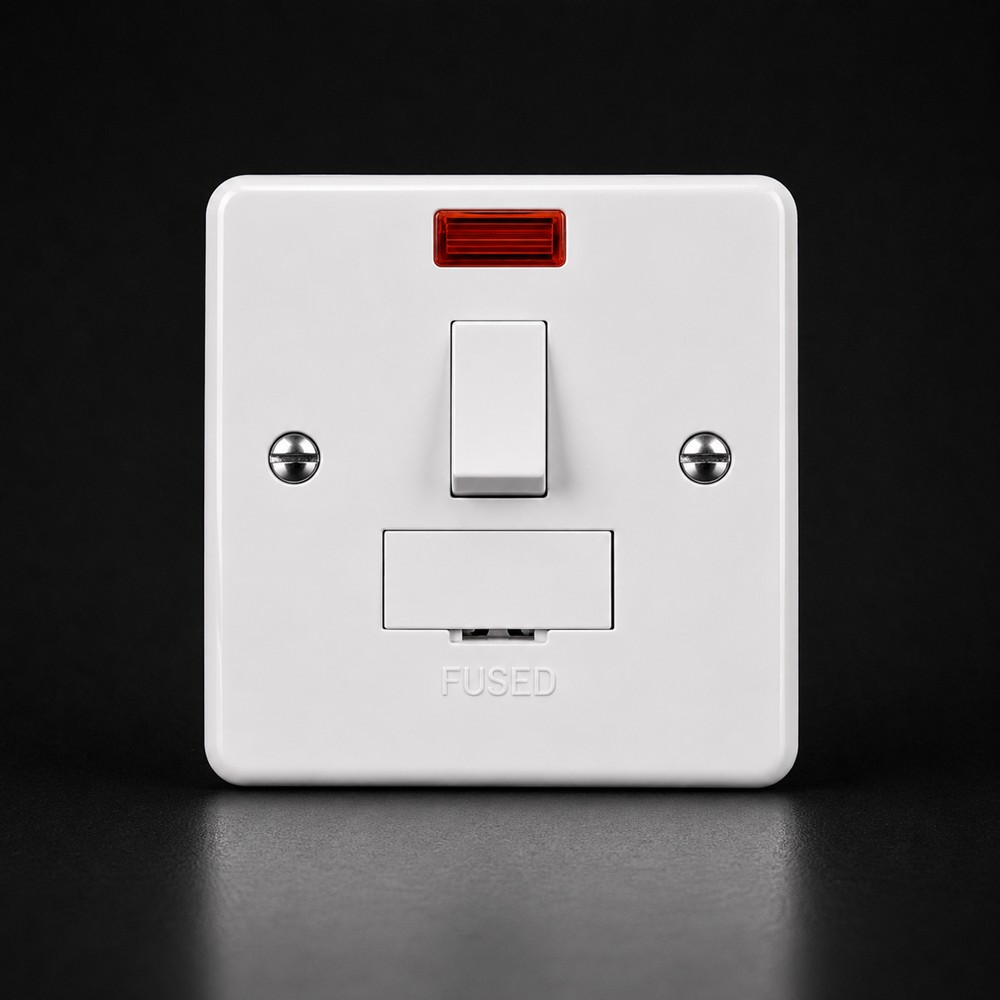

Click Mode 13A DP Switched FCU with Neon White CMA652

£4.63 Ex VAT
Out of stock.
Next Day Delivery
- +
Fast UK Delivery
Trade Focused Support

Description

Buy Click Mode CMA652 13A DP switched FCU with neon. Switched fused spur with indicator for fixed appliances.

Fast UK delivery.

Product Code: CMA652
Brand: Click
Colour: White

The Click Mode CMA652 is a 13A double pole switched fused connection unit with neon indicator, designed for protected spur circuits where visible power indication is required. It is well suited to fixed appliances such as boilers, heaters, and other hardwired loads.

By combining fused protection, double pole switching, and a neon indicator, it gives installers a clear and practical switched spur option for controlled appliance circuits.

KEY FEATURES
13A DP switched FCU with neon
Double pole switched fused spur
Neon indicator for visible power status
Suitable for fixed appliance circuits Ideal for boilers, heaters and hardwired equipment
Smooth profile white plate
Part of Click Mode wiring accessories range
IP20 rated – indoor use

Technical Specifications

Warranty25 Years
StandardsBS 1363-4 BS 1362
CE ApprovedN
Voltage250 V
Current Rating13 A
Depth9.5 mm
Width86 mm
Height86 mm
Mounting Box Minimum Depth25 mm
Fixing Centres60.3 mm
Indicator ColourOrange
Face ColourWhite
Body MaterialUrea
ColourWhite
MaterialUrea
USBN
RJ45 Cat 6N
RJ45 Cat 5EN
RJ11N
SatelliteN
FM/DABN
TV SocketN
Telephone SecondaryN
Telephone MasterN
Ingress ProtectionIP20
LegendFused
MountingSurface
Lockable?N
Screwless?N
Fuse FittedY
Flex OutletN
Pole ConfigurationDouble Pole (2P)
Neon IndicatorY
Includes RCD?N
Includes 13A Switch Socket?N
Gangs1 Gang
Switched/UnswitchedSwitched
QualifierFused Connection Units
TypeFused
ProductConnection Unit
